Weatherproof In-Wall Power Supply

Permanent power where no socket is available

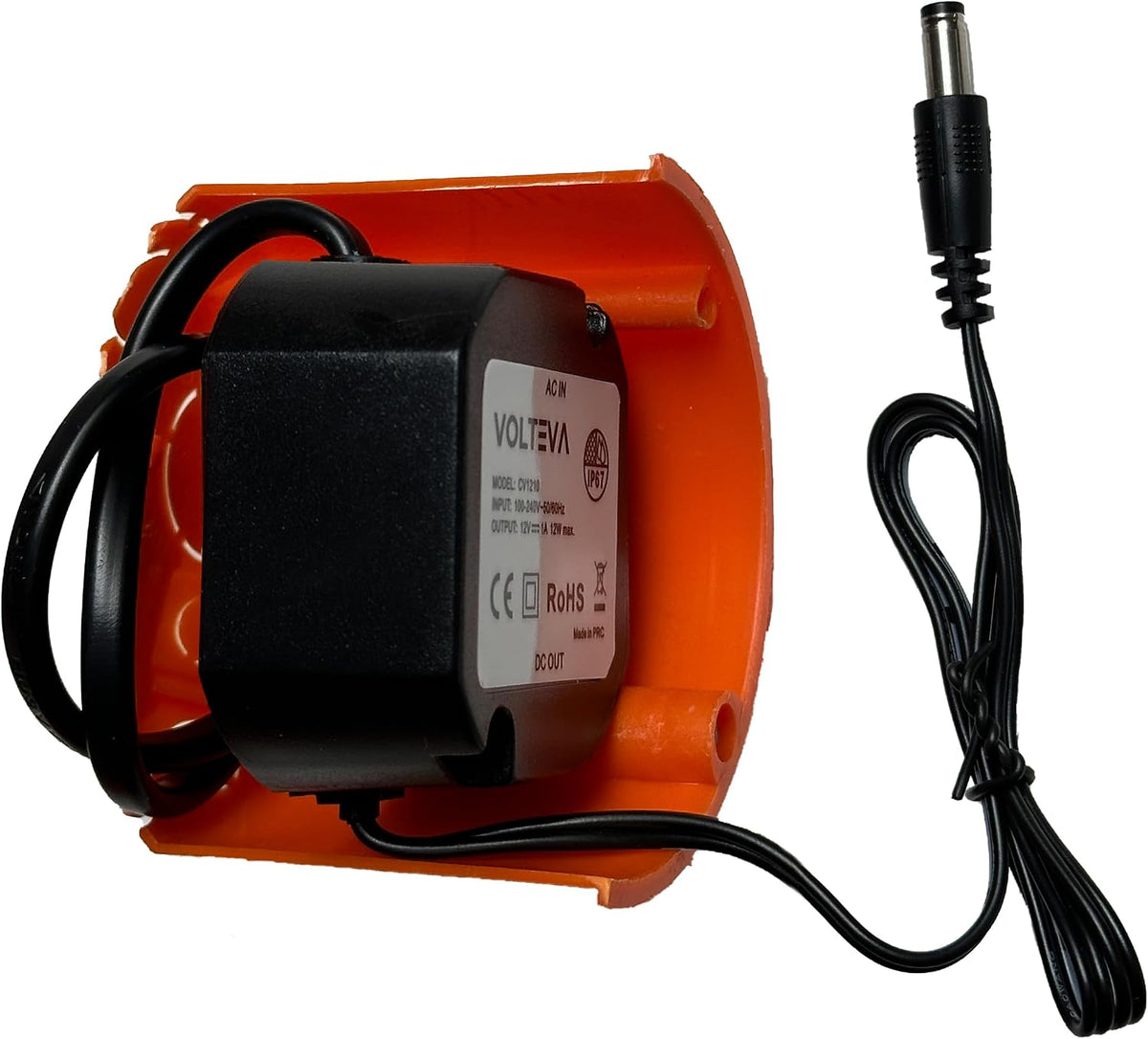

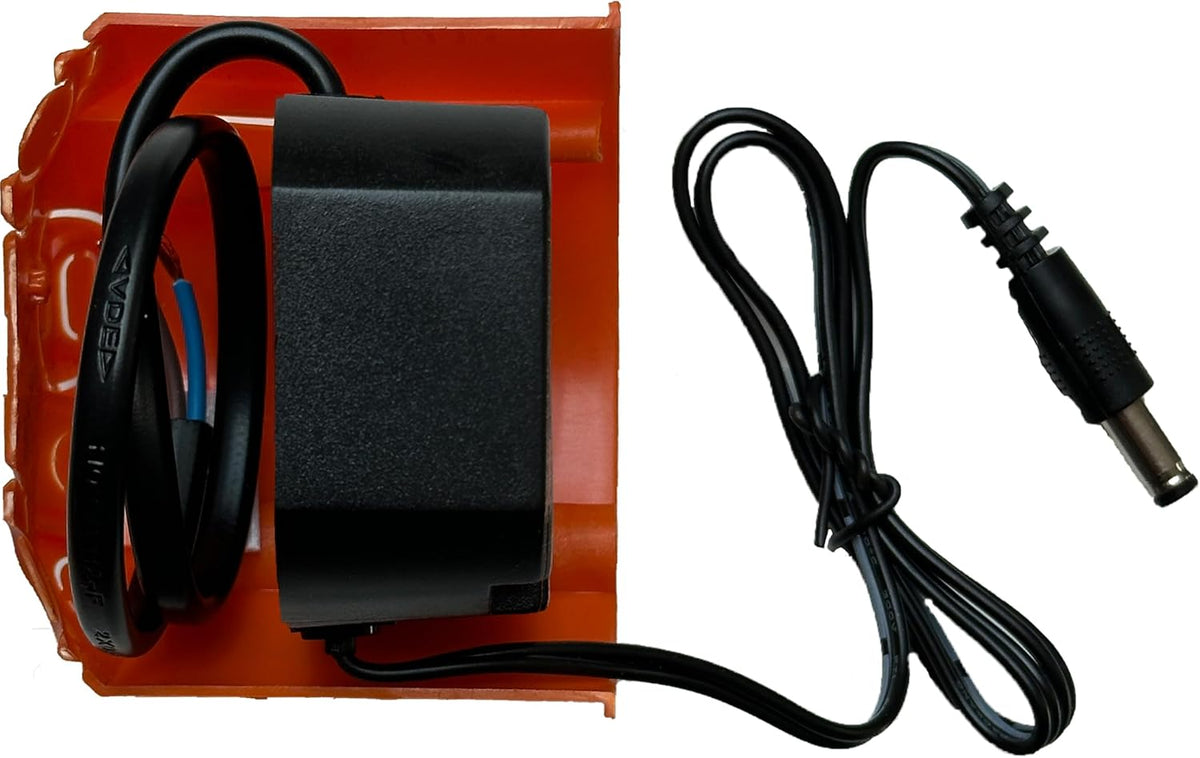

A sealed power supply, compact enough to fit inside a flush-mounting box, for powering cameras and outdoor lighting without a visible adapter.

Specifications

• Dimensions: 50 × 48 × 25 mm (width × height × depth)
• Input: 100–240 V AC
• Integrated 5.5 × 2.1 mm DC connector on a 40 cm cable
• Operating range: −30 to +45 °C
• IP67-rated enclosure: dust-tight and protected against temporary immersion in water

Check compatibility before connecting

The device must match the selected power supply’s 12 V or 18 V DC output voltage and polarity, use a compatible 5.5 × 2.1 mm DC connector, and remain within its current and power limits. Brand names are examples only and do not guarantee compatibility with every model.

Cable routing

Any modification or extension of the AC or DC cable must be carried out by a qualified electrician using cables and connections suitable for the voltage, current, installation method and location.

Safety

Integrated protection against short circuits, overvoltage, overcurrent and overheating.

Installation and safety

Work on mains voltage and permanently connected electrical installations must only be carried out by a qualified electrician in accordance with the regulations applicable at the installation site. Isolate all poles from the power supply and secure against reconnection before installation. Observe the technical limits, terminal assignments and supplied safety instructions. Do not install or continue using damaged or deformed products.

Manufacturer and contact

Volteva GmbH, Eiffestraße 600, 20537 Hamburg, Germany · info@volteva.de · +49 1514 4209608
